Bergo Solid

A unique flooring concept for areas with high demands.

Can be applied to difficult and insufficient areas such as sand, soil and grass.

Bergo Solid

StandardColors

* = limited stock

Solid Basic Black

Video

Go to our Youtube-channel

Product Information

BERGO SOLID™ flooring system is a strong, flexible and easy mounted ground protecting interlocking floor with high sustainability.

BERGO SOLID™ is made from strong plastic (HDPE), developed for the UN for emergency and conflict areas. The hexagonal design provides exceptionally strong locking in six directions and its flexibility and strength makes these ground protecting floor tiles perfect for store units, pavilions and even to build temporary roads where heavy vehicle can operate. Even when it comes to events, camping and as a protecting surface, BERGO SOLID™ flooring system is optimal to use.

Advantages:

  • Heavy duty floor.

  • Can be applied on all types of outdoor surfaces, even sand, soil, grass and ice.

  • Adapts to the subground and no preliminary work is needed.

  • Can resist very heavy loads and carries trucks, machines and cars.

  • Easy to install and move.

  • Time of installation/person: approx 100 m2/h

Usage areas:

  • Warehouses and tents.

  • Outdoor events and concert venues.

  • Temporary parking lots, e.g. in connection with events.

  • Temporary roads that also allows heavy vehicles
    (e.g. building/construction works).

  • As subfloor for sport arenas.

  • Protection of existing surfaces.

  • Events on ice.

Accessories

Ground anchor for Bergo Solid

Bergo Solid can be fixed to a soft substructure with ground anchors.


Bergo Multifix cleaning agent

– effective cleaning for Bergo floors

Bergo Multifix is a cleaning agent specially developed for cleaning of Bergo floors and works efficiently on surfaces in sports halls, outdoor sport courts, workshops, public environments, garages etc.

Bergo Multifix effectively dissolves greasy coatings containing oil, soot, grease and also handball adhesives.



Dosage/Instruction for use

Heavily soiled floors:

1. Dosage: Mix 10 % (1 dl per liter) Bergo Multifix with water (preferably hot).
2. Apply the solution with, for example, a pressure sprayer/spray bottle and leave for 5 minutes before cleaning.
3. Clean the floor: Our cleaning tests on the Bergo floors, have shown that the best results are given with rotating brush (e.g. scrubber-drier with vacuuming or similar) with red rondell or high preassure cleaning. (Manual cleaning with a mop functions less well).
4. If you do not use a combi-scrubber-drier with wacuuming, immediately absorb the dirt water and rinse/dry with clean water.

Less soiled floors:

1. Dosage: Mix 5 % (1/2 dl per liter) Bergo Multifix with water (preferably hot).
2. Clean the floor: Our cleaning tests on the Bergo floors have shown that the best results are given with rotating brush (scrubber-drier with vacuuming or similar) with red rondell or high preassure cleaning. (Manual cleaning with a mop or cloth functions less well).
3. If you do not use a combi-scrubber-drier with wacuuming, immediately absorb the dirt water and rinse/dry with clean water.



Download brochure here

Technical specification

Bergo Multifix Cleaning agent, 5 liter

Art. No. 166783

pH-value: Approx 13,4 in concentrate, ca 11,7 in solution (2%)

Storage: Stored cool or at room temperature. Protect from frost. Storage stability in unbroken packaging is at least 2 years.

ADR: Class 8




Installation

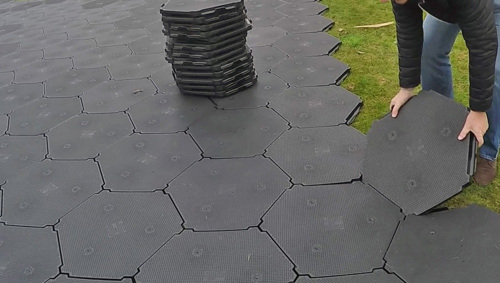

SOLID flooring system assembled on different surfaces

A geotextile underneath protects the tiles from dirt on soft grounds like grass, sand or soil.




Easy to install and move.
Time of installation/person: approx 100 m2/h


Cut for a straight finish: triangles and half tiles.


Cut for a straight finish: Triangles


Cut for a straight finish: Half tiles

Technical Specification





Material:

HDPE

Colour:

Black

Size:

630 x 575 x 50 mm (LxBxH)

Pointload:

On soft surface: 5 ton/m²
On solid/hard surface: 600 ton/

Temperature, resistance:

-30 till +60 °C

U-value:

0,8 W/m2K

Warranty:

5 years

Packaging:

Loading on a pallet, 1200 x 1000 x 150 mm:

• 84 pcs base tiles (22.68 m2)
• 1250 x 1135 x 1200 mm (Length x Width x Height)
• Weight pallet: 243 kg
• Double stack two pallets to a total height of 2400 mm

Loading 20ft container:

• 1280 pcs base tiles (345,6 m2)
• Weight container: 1280 pcs x 2,9 kg = 3712 kg + pallets



Loading i 40 ft container:

• 3024 pcs base tiles (816,48 m2)
• Weight container: 3024 pcs x 2,9 kg = 8770 kg + pallets
