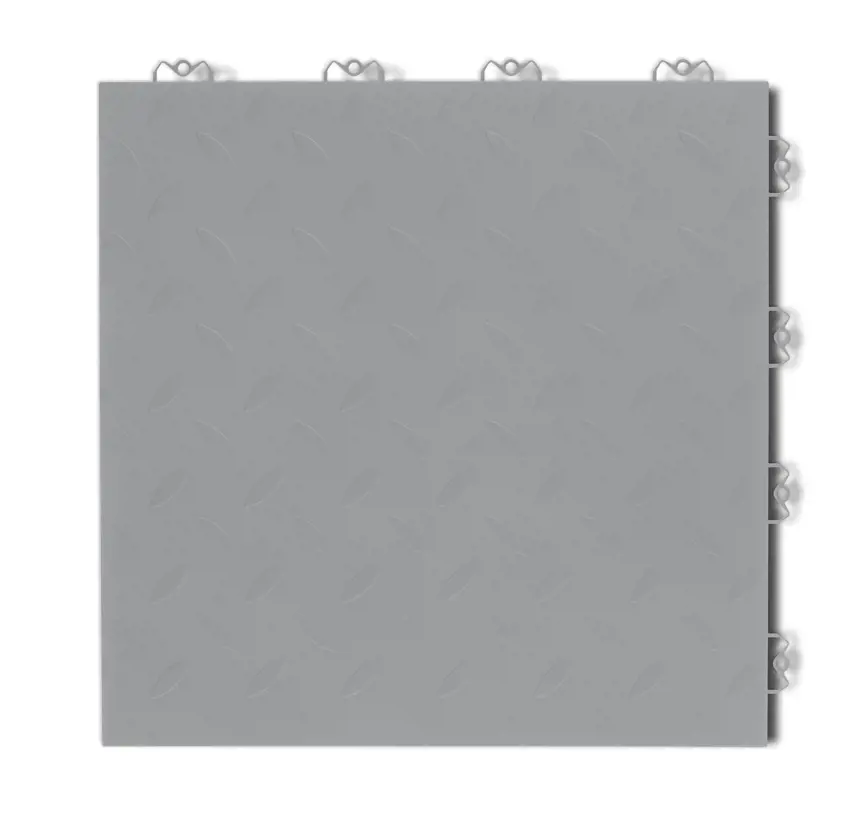

Bergo Nova

BERGO NOVA is a solid tile that forms part of the System 2-floors.

Can be used to create a setting in just a few moments and is attractive yet functional at the same time. The chequer-plate pattern provides a non-slip surface and a bold look.  Functions equally well indoors and out, and in all possible climates.

Bergo Nova

StandardColors

True White

Stone Grey

Graphite Grey

Silk Black

Hot Red

AnyDesign - AnyColor

We have, in collaboration with the designers developed a wide and attractive range of colors that can be combined endlessly.
We call it AnyColor.

When ordering colors that does not appear in standard colors above, an additional fee for orders less than 300m2 will be charged. Minimum order 30 m2.



Shadow Grey

Metal Grey

Sandstorm

Sand

Cedar Wood

Chocolate Brown

Terracotta

Sienna

Pine

Spring Grass

White Cloud

Morning Blue

Steel Blue

Yellow Flame

Orange Glow

Blue Violet

Warm Violet

Purple

Red

Product Information

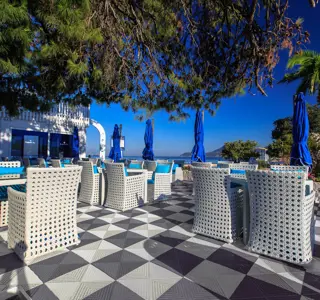

Examples of applications: Balconies, patios, smaller private garages, storerooms, cellars, wet areas such as saunas, pools, shower areas and utility rooms. In the case of larger garage areas and car show rooms, Bergo Supreme is recommended.

This flooring can also be used in public settings such as standard shops and exhibition halls, light industry, storerooms, balcony projects, etc.

Here are some of the multifunctional properties offered by the product:

  • Easy to lay – no fasteners.
  • Adapts to the surface beneath – no need to smooth out any irregularities
  • Easy-draining
  • Well-vented – allows the surface beneath to breathe
  • Movable
  • Maintenance-free
  • Non-organic material (non-moisture-absorbing)

All floors within the System 2-floors have an interlocking system with integrated expansion capacity, which makes it easy to install our floors in environments with fluctuating temperatures. All floor tiles within the System 2-floors can also be combined, which allows you to devise your own individual look and functionality, e.g. an open pattern in certain places and solid in others.

For an increased comfort, a suitable acoustic damping underlay is recommended, such as foam or landscaping fabric, underneath Bergo Nova. Consult your dealer what is appropriate for your surface.

Our floors are 100% recyclable as a raw material, again and again, and can ultimately be incinerated at district heating plants for heating our homes, with no environmentally-harmful emissions.


Accessories

Edge Strip, System 2

By using Bergo edge strips and corner strips, you will give your floor an attractive design.

Bergo Edge strips System 2 with corners are easy to install.

Please note! Edge strips are not possible to attatch to cutted floor tiles.

Available in all AnyColor colors.

Technical specification

SYSTEM 2

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

Size:

376 x 55 mm (14,8 x 2,2 inches)
(4-pack = 1,5 m = 59 inches)
Thickness: 10 mm.


Packaging:

Consumerpack: 4-pack.




Bergo Corner strip, System 2

Bergo corner strips together with Edge strips will give your floor an attractive design.

Bergo Corner strips System 2 with Edge strips are easy to install.

Available in all AnyColor colors.

Technical specification

SYSTEM 2

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

Size:

55 x 55 mm. (2,2 x 2,2 inches)
Thickness: 10 mm.

Packaging:

Consumer pack: 4-pack.


Cable Strip, System 2

Bergo Decor Strip is a practical complement for tiles in System 2.

Use the Decor strip for special design purposes and/or hiding cables underneath the flooring. Decor/Cable cross-piece (55 x 55 mm), to be used as two lines of the above cable strips intersect with each other. Maximum cabeldimension 6 mm.

Available in all AnyColor colors.

Technical specification

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

Size:

377 x 55 mm (14,8 x 2,2 inches)
(4-pack = 1,5 m = 59 inches)
Tjocklek: 10,1 mm.

Packaging:

Consumer pack: 4-pack.



kabellistImage.jpg kabellist.jpg

Cable Cross-piece, System 2

Bergo Decor/Cable Cross-piece to be used together with Décor/Cable strips and is a practical complement for Tiles System 2.

Use the Decor/Cable Cross-piece together with Decor/Cable strip for special design purposes and/or hiding cables underneath the flooring.

Decor/Cable cross-piece, to be used as two lines of Décor/Cable strips intersect with each other.

Available in all AnyColor colors.

Technical specification

SYSTEM 2

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

Size:

55 x 55 mm. (2,2 x 2,2 inches)
Thickness: 10 mm.

Packaging:

Consumer pack: 4-pack.


Edge protection

Self-gripping Edge Protection profile for cutted edges.

Technical specification

PVC with integrated steel strip core.

Colour: Black.



System 1

15 x17 mm

Art. No. 23BK per meter, Art. No. 24BK for one roll.



System 2

15 x 12 mm

Art. No. 76BK per meter. Art. No. 77BK för one roll.

DSC_0002.jpeg DSC_0010.jpeg

Joint Strip, System 2

The Joint strips are installed in between each Bergo Elite or Bergo Nova tile in order to create a completely covered surface.

The Joint strips should only be used indoors or as one have a constant temperature. As one have temperature variations the expansion gap between the tiles needs to be open.

Not for outdoor environments or for example in a conservatory, with significant temperature variations.

Bergo Joint strips are for decoration and / or if you want a fully covered floor space. For indoor use only.

Bergo Joint strips are designed to fit Bergo Elite and Bergo Nova System2.

NOTE! Do not use in temperature varying environments where expansion function disappears when the Joint strips are applied. Are not recommended in outdoor environments or for example a conservatory, with temperature variations.

We recommend that Joint strips are installed at the same pace as you lay the Bergo floor tiles.

Installation

Things to consider before you install Bergo Joint strips

Remember that the Joint strips remove the floor's ability to expand, so it is important to add the Joint strips in environments that have a constant temperature.

By a new installation of Bergo Elite / Nova, keep the floor tiles in a few hours in the room that the floor should be installed so that they get the same room temperature.

As the floor expands in varying temperatures, it can reduce the gaps between the tiles and it may therefore be difficult to add the Joint strips on a surfaces with Bergo tiles that already are installed since earlier.

We therefore recommend that the Joint strips are installed at the same pace as you lay the Bergo floor tiles.

Use a rubber hammer when installing the Joint strips. At smaller amount of Joint strips, you can also press them down by hand. Another tip is to use a mini role (such as used in wallpapering or similar).



Technical specification

SYSTEM 2

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

Size:

379 mm x 2,8 mm (14,9 x 0,1 inches)
36-pack = räcker till ca 2,5-3 m2 (≈ 30 sq ft)

Packaging:

36-pack

Colours:

Stone grey, Art. Nr. 3675SG
Graphite grey, Art. No. 3675GG

foglistImage.jpg DSC_0084.JPG

Single tile Replacement Tool, System 2

Bergo Flooring has four fitting removal tools for different needs of the removal of the Bergo Floors; Disassembly Tool Professional, Disassembly Tool Consumer, Single Tile replacement Tool System1 and Single Tile Replcacement Tool System2.

The Bergo Floor is easy to move. One can dismantle and move the floor quickly to the place one prefers with the use of our Singel Tile replacement Tool System2.

For easy and fast dis-assembly of your Bergo floor.
Fits for System 2: Bergo Unique, XL, Briq, Elite och Nova.




Disassembly tool Professional

Bergo Flooring has four fitting removal tools for different needs of the removal of the Bergo Floors; Disassembly Tool Professional, Disassembly Tool Consumer, Single Tile replacement Tool System1 and Single Tile Replcacement Tool System2.

Bergo Disassembly Tool Professional is designed to be used for larger installation.

A shaft is included and this Tool is primarily to be used by those who have mobile applications and need a quick and easy dismantling of the Bergo Floor.

For example, at Trade Shows, Events, Racing, etc.
Bergo Professional fits all Bergotiles, ie to both System1 and System2.



Technical specification

Art. No.:

SYSTEM2: 11RT

SYSTEM1+2: 18RT

TOP TILE: 17RT



vlcsnap-2016-11-29-13h52m30s062.png 18RT.jpg

Installation

"The non-glue-installation"

There is no need for either glue or special tools when laying your new Bergo floor. All you need is a rubber mallet and perhaps a yardstick and a saw.


1. Start in a corner: see the picture. Remember always to turn the protruding rings in the same direction (forwards).


2. Fix the tiles with the connection taps over the protruding rings and fit them together with sharp strokes of a rubber mallet.

3. Completed.

Remember, before you install the flooring: Let the floor tiles remain few hours in the room where the floor should be installed so that they have the same temperature. To make sure it functions well, always install a Bergo floor on a clean, hard and even surface. Allow a certain distance from walls, doorsteps etc. if the flooring is likely to be exposed to varying temperatures.

For an increased comfort, a suitable acoustic damping underlay is recommended, such as foam or landscaping fabric, underneath Bergo Nova. Consult your dealer what is appropriate for your surface.


BERGO TILE CARE INSTRUCTIONS

With regular care of your Bergo floor according to the recommendation, you will ex-tend the lifetime, color and lustre of your floor by many years.

Bergo’s multifunctional floor tiles are made from the best materials available in the market. They offer the highest possible color stability and UV protection. Therefore our products are likely to last for many years, even with a minimum of maintenance. Taking care of the tiles regularly extends the lifetime and lustre of your floor. Therefore we recommend these care measures:
Cleaning - Indoors - One of the multiple functions of a Bergo floor is that it looks clean and fresh, even if it goes a long time between cleanings. Bergo flooring installed in an indoor environment is cleaned as needed with traditional cleaning equipment such a vacuum and a mop with a *cleaning agent. If you haven’t cleaned the floor in a long time, you can uncover the substratum which needs cleaning. Use our disassembly tool to split the floor into smaller sheets. Remove the sheets and clean the substratum with the required cleaning agent and equipment. Next put the floor back in its original location.
Cleaning - Outdoors - Dirt particles spread by wind and weather will end up on your Bergo floor as well. To keep your floor clean, we recommend that you regularly mop it with a *cleaning agent and then rinse it with a hose. A high-pressure wash appliance is preferable if you have access to one. You decide how often to clean the floor, but we recommend doing so at least once a year. If the flooring is extremely dirty or if it’s been a long time since it was cleaned, we recommend using a somewhat stronger detergent combined with a rotating brush used for high-pressure washing, for example.
Large surfaces and/or public spaces - Naturally it is faster to use professional cleaning equipment in public spaces and larger installations where floors become extremely dirty. We suggest that you consult with your cleaning company.

* Cleaning agent - Most cleaning agents can be used to remove dirt. Some are especially suited for composites, and these are recommended. In extremely dry environments such as indoors, the detergent should contain an antistatic agent which minimizes the risk of static electricity. Bergo’s products can withstand most chemicals. For more information, see the ”Chemical Resistance Table” for PP. Consult your dealer about the recommended media for best results on PP plastic.

Technical Specification

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilised for climat in Arizona.
FDA approved. No emissions. (No PVC).

Size of tile:

377,2 x 377,2 mm.
The tile builds to the size of: 380 x 380 mm
Thickness of tile: 10,5 mm.

Packaging:

Maxi pack: 5 m² / carton. For project.
Pallet: 180 m²



Point load:

Point weight: 400 ton/m² = 4000 kg/dm², 130 kg/cm²

SYSTEM2
