Bergo Excellence

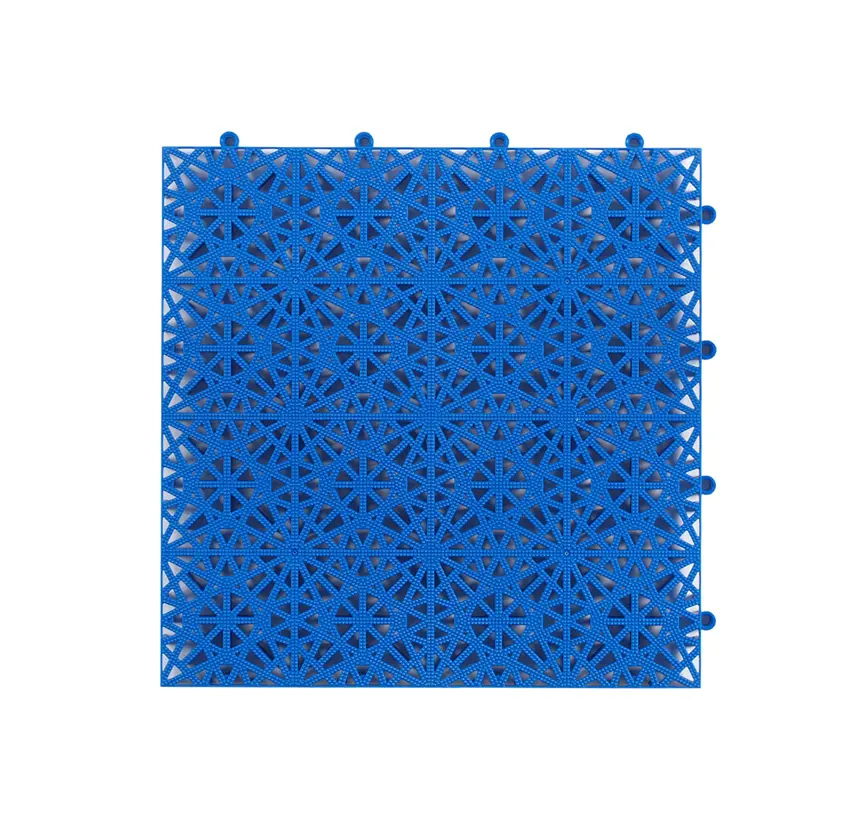

BERGO EXCELLENCE™ is part of the System 1-floors and is a sound, technical modular tile for ferry decks.

It has been developed to cope with extreme conditions, such as those found on the ship decks.

Its multifunctional properties enable it to cope with not just wear and tear, but also heat, cold, salt, sun, wind and water, all at the same time. In addition to its lightweight, easy-draining and well-vented structure, its multifunctional properties also include a soundproofing effect. It is comfortable to walk on, even in bare feet in the hottest of countries. The extra dense pattern makes it also suitable for stiletto heels, etc.
When installing plastic deck covering on ships, the deck tiles protects the painted surface of ship decks and cuts down on the need for repainting. This represents big savings in maintenance costs.

s sg.jpeg Kong Harold.jpg (1)

Bergo Excellence

StandardColors

* = limited stock

Silver Grey

Light Blue

Dark Blue

Green

Cedar Wood

AnyDesign - AnyColor

We have, in collaboration with the designers developed a wide and attractive range of colors that can be combined endlessly.
We call it AnyColor.

When ordering colors that does not appear in standard colors above, an additional fee for orders less than 300 m2 will be charged.



True White

Shadow Grey

Stone Grey

Graphite Grey

Silk Black

Tennisred

Spring Grass

Steel Blue

Plain Orange

Plain Yellow

Plain Red

Product Information

Pattern:
Bergo Excellence™ has a rough surface with knobs, which yields extra friction and reduces the risk of ice formation in cold climates.

You will find Bergo Excellence plastic floor tiles in demanding outdoor café environments, in shops and on hundreds of ship decks throughout the world, from the Hurtigruten coastal vessels in Norway, to luxury cruisers in the West Indies, and even passenger ferries.
Here are some of the multifunctional properties offered by the product:

Some multi-functions Bergo Excellence offers

  • Easy to lay – no fasteners.
  • Adapts to the surface beneath – no need to smooth out any irregularities
  • Easy-draining and well-vented – allows the surface beneath to breathe
  • Non-slip characteristics
  • Movable
  • Minimal maintenance
  • Non-organic material (non-moisture-absorbing)
  • Hard-wearing and load-resistant
  • Sound-absorbing
  • Supplied as pre-assembled sheets (3 x 4 tiles), which means the floors can be laid very quickly.
  • Our floors are 100% recyclable as a raw material, again and again, and can ultimately be incinerated at district heating plants for heating our homes, with no environmentally-harmful emissions.
Brochure sheet

Accessories


Edge Strip, System 1


Bergo Corner strip, System 1


Connecting-rings Edge Strip, System 1


Edge protection


Expansion Strip, System 1


Expansion Cross-piece, System1


Expansion Edge piece, System1


Disassembly tool Professional


Cable Strip, System 1


Single tile Replacement Tool, System 1


Bergo Multifix cleaning agent

Edge Strip, System 1

By using Bergo Edge strips and corner strips you will give your floor an attractive design.

Available in all AnyColor colors.

Please note! Edge strips are not possible to attatch to cutted floor tiles.

Technical specification

Art. No. 520__

kantlistSystem1Image.jpeg kantlistSystem1.jpeg

Bergo Corner strip, System 1

By using Bergo Corner strips, together with Edge strips, will give your floor an attractive design.

Available in all AnyColor colors.

Technical specification

Art. nr. 430__

hornlistSystem1Image.jpg hornlistSystem1.jpg

Connecting-rings Edge Strip, System 1

Bergo Connecting-rings are only being used in certain cases and only with Bergo Edge strip together with the following tiles: Bergo Royal, Supreme and Excellence.

Bergo Connecting-rings are being used as Edge strips are to be connected/installed on the two sides of the tile where the pro-truding rings are missing.

NOTE!
Connecting-rings are NOT needed for connecting/installing the Edge strip with Bergo Ultimate, Ultimate PLUS, Elite, Nova, XL and Unique!

Technical specification

Art. No. 8BK

fastoglaImage.jpg fastogla.jpg

Edge protection

Self-gripping Edge Protection profile for cutted edges.

Technical specification

PVC with integrated steel strip core.

Colour: Black.



System 1

15 x17 mm

Art. No. 24BKM per meter, Art. No. 24BK for one roll.



System 2

15 x 12 mm

Art. No. 76BKM per meter. Art. No. 76BK för one roll.

DSC_0002.jpeg DSC_0010.jpeg

Expansion Strip, System 1

Bergo expansion strips should be used when the area is exposed to dramatic temperature changes.

In cases where some of the sides are longer than 6 metres, an expansion strip may be required. This is the case with outdoor surfaces or indoor surfaces where large areas of glass let a lot of light onto the floor. If there are large temperature differences, there is a risk that the floor will become warped. You can prevent this by inserting expansion strips. You will find more detailed information in the Laying Instructions. If you are in doubt, you are more than welcome to contact our customer services. Then we will tell you more!

Expansion strips are only for System1 floors.

Please notice that our System 2 tiles has been developed with an expansion space in between each tile in order to avoid expansion during temperature variations. One are therefore in no need of expansiontiles for this type of tile.

Available in all AnyColor colors.





Technical specification

Material: Environmentally friendly recyclable UV-stabilized PP-composite. UV- and Colorstabilized for climate in Arizona. FDA approved. No emissions. (No PVC).

Art. No.: 240__

Size: 300 x 75 x 13,5 mm.

Weight 1 pcs: 98 g.

Weight 2-pack: 210 g.

expListImage.jpg expList.jpg

Expansion Cross-piece, System1

Bergo expansion strips should be used for SYSTEM 1 when the area is exposed to dramatic temperature changes.

Expansioni Cross-piece are used as two lines of the Expansion Strips intersect with each other.

In cases where some of the sides are longer than 6 metres, an expansion strip may be required. This is the case with outdoor surfaces or indoor surfaces where large areas of glass let a lot of light onto the floor. If there are large temperature differences, there is a risk that the floor will become warped. You can prevent this by inserting expansion strips. You will find more detailed information in the Laying Instructions. If you are in doubt, you are more than welcome to contact our customer services. Then we will tell you more!


Bergo Unique, Bergo XL, Bergo Elite, Bergo Nova, Bergo Briq belongs to System 2 and has been developed with an expansion space in between each tile in order to avoid expansion during temperature variations. One are therefore in no need of expansiontiles for this type of tile.

Available in all AnyColor colors.

Technical specification

SYSTEM 1

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

expKryssImage.jpg DSC_0024.jpg

Expansion Edge piece, System1

Bergo Expansion Edge piece is an accessory, which is used together with the Edge strips as practical and attractive ending of a row with Expansion strips.

Technical specification

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).



Size: 75 x 52 mm. Height: 13,5 mm.

Article No. 41__

DSC_0054.JPG RD.jpg

Disassembly tool Professional

Bergo Flooring has four fitting removal tools for different needs of the removal of the Bergo Floors; Disassembly Tool Professional, Disassembly Tool Consumer, Single Tile replacement Tool System1 and Single Tile Replcacement Tool System2.

Bergo Disassembly Tool Professional is designed to be used for larger installation.

A shaft is included and this Tool is primarily to be used by those who have mobile applications and need a quick and easy dismantling of the Bergo Floor.

For example, at Trade Shows, Events, Racing, etc.
Bergo Professional fits all Bergotiles, ie to both System1 and System2.



Technical specification

Art. No.:

SYSTEM1+2: 18RTKIT

TOP TILE: 17RTKIT



vlcsnap-2016-11-29-13h52m30s062.png 18RT.jpg

Cable Strip, System 1

Bergo Cable Strip is a practical complement for tiles in System 1.

Use the Cable strip for hiding cables underneath the flooring.

Maximum cabeldimension 8 mm.



Technical specification

SYSTEM 1

Material:

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilized for climate in Arizona.
FDA approved. No emissions. (No PVC).

Size:

346 x 97 mm.
Thickness: 13 mm.

Weight:94 g.

Art. No. 27__



Bergo_Cablestrip_System1_2.jpg Bergo_Calbestrip_System1.JPG

Single tile Replacement Tool, System 1

Bergo Flooring has four fitting removal tools for different needs of the removal of the Bergo Floors; Disassembly Tool Professional, Disassembly Tool Consumer, Single Tile replacement Tool System1 and Single Tile Replcacement Tool System2.

The Bergo Floor is easy to move. One can dismantle and move the floor quickly to the place one prefers with the use of our Singel Tile replacement Tool System2.

In case one tile is damaged one can change the individual tile by using Bergo Single Tile Replacement Tool.
Fits for System 1: Bergo Excellence, Bergo Multisport, Royal and Bergo Bergo Tennis.



User Manual 8RT

Technical specification

Art. No. 8RT

Bergo_dissassembly tool_8rt_tile.jpg Bergo_dissassembly_tool_8rt.jpg

Bergo Multifix cleaning agent

– effective cleaning for Bergo floors

Bergo Multifix is a cleaning agent specially developed for cleaning of Bergo floors and works efficiently on surfaces in sports halls, outdoor sport courts, workshops, public environments, garages etc.

Bergo Multifix effectively dissolves greasy coatings containing oil, soot, grease and also handball adhesives.



Dosage/Instruction for use

Heavily soiled floors:

1. Dosage: Mix 10 % (1 dl per liter) Bergo Multifix with water (preferably hot).
2. Apply the solution with, for example, a pressure sprayer/spray bottle and leave for 5 minutes before cleaning.
3. Clean the floor: Our cleaning tests on the Bergo floors, have shown that the best results are given with rotating brush (e.g. scrubber-drier with vacuuming or similar) with red rondell or high preassure cleaning. (Manual cleaning with a mop functions less well).
4. If you do not use a combi-scrubber-drier with wacuuming, immediately absorb the dirt water and rinse/dry with clean water.

Less soiled floors:

1. Dosage: Mix 5 % (1/2 dl per liter) Bergo Multifix with water (preferably hot).
2. Clean the floor: Our cleaning tests on the Bergo floors have shown that the best results are given with rotating brush (scrubber-drier with vacuuming or similar) with red rondell or high preassure cleaning. (Manual cleaning with a mop or cloth functions less well).
3. If you do not use a combi-scrubber-drier with wacuuming, immediately absorb the dirt water and rinse/dry with clean water.



Download brochure here

Technical specification

Bergo Multifix Cleaning agent, 5 liter

Art. No. 166783

pH-value: Approx 13,4 in concentrate, ca 11,7 in solution (2%)

Storage: Stored cool or at room temperature. Protect from frost. Storage stability in unbroken packaging is at least 2 years.

ADR: Class 8




Installation

Remember, before you install the flooring: Let the floor tiles remain few hours in the room where the floor should be installed, so that they have the same temperature.

To make sure it functions well, always install a Bergo floor on a clean, hard and even surface. Allow a certain distance from walls, doorsteps etc. if the flooring is likely to be exposed to varying temperatures.


BERGO TILE CARE INSTRUCTIONS

With regular care of your Bergo floor according to the recommendation, you will ex-tend the lifetime, color and lustre of your floor by many years.

Bergo’s multifunctional floor tiles are made from the best materials available in the market. They offer the highest possible color stability and UV protection. Therefore our products are likely to last for many years, even with a minimum of maintenance. Taking care of the tiles regularly extends the lifetime and lustre of your floor. Therefore we recommend these care measures:
Cleaning - Indoors - One of the multiple functions of a Bergo floor is that it looks clean and fresh, even if it goes a long time between cleanings. Bergo flooring installed in an indoor environment is cleaned as needed with traditional cleaning equipment such a vacuum and a mop with a *cleaning agent. If you haven’t cleaned the floor in a long time, you can uncover the substratum which needs cleaning. Use our disassembly tool to split the floor into smaller sheets. Remove the sheets and clean the substratum with the required cleaning agent and equipment. Next put the floor back in its original location.
Cleaning - Outdoors - Dirt particles spread by wind and weather will end up on your Bergo floor as well. To keep your floor clean, we recommend that you regularly mop it with a *cleaning agent and then rinse it with a hose. A high-pressure wash appliance is preferable if you have access to one. You decide how often to clean the floor, but we recommend doing so at least once a year. If the flooring is extremely dirty or if it’s been a long time since it was cleaned, we recommend using a somewhat stronger detergent combined with a rotating brush used for high-pressure washing, for example.
Large surfaces and/or public spaces - Naturally it is faster to use professional cleaning equipment in public spaces and larger installations where floors become extremely dirty. We suggest that you consult with your cleaning company.

* Cleaning agent - Most cleaning agents can be used to remove dirt. Some are especially suited for composites, and these are recommended. In extremely dry environments such as indoors, the detergent should contain an antistatic agent which minimizes the risk of static electricity. Bergo’s products can withstand most chemicals. For more information, see the ”Chemical Resistance Table” for PP. Consult your dealer about the recommended media for best results on PP plastic.

Installation instructions CARE INSTRUCTIONS

Technical Specification

Made of environmentally friendly recyclable PP-composite (polypropylene).
UV- and Colorstabilised for climat in Arizona.
FDA approved. No emissions. (No PVC).

Surface:

Surface with knobs

Format:
302,1 x 302,1 x 14,5 mm

Packaging:
5 m2 = 55 pcs per carton = 20,3 kg, Pallet: 120 m²
From us pre-assembled in sections 4 x 3 tiles or 1,2 x 0,9 m, 75 pcs pre-assembled sections = 81,8 m² per pallet = 335 kg

Point load: 550 ton/m²= 5500 kg/dm², 170 kg/cm²

TECHNICAL DOCUMENTATION

Download

Technical Documentation Brochure sheet CARE INSTRUCTIONS Installation instructions
